Filter

Overview

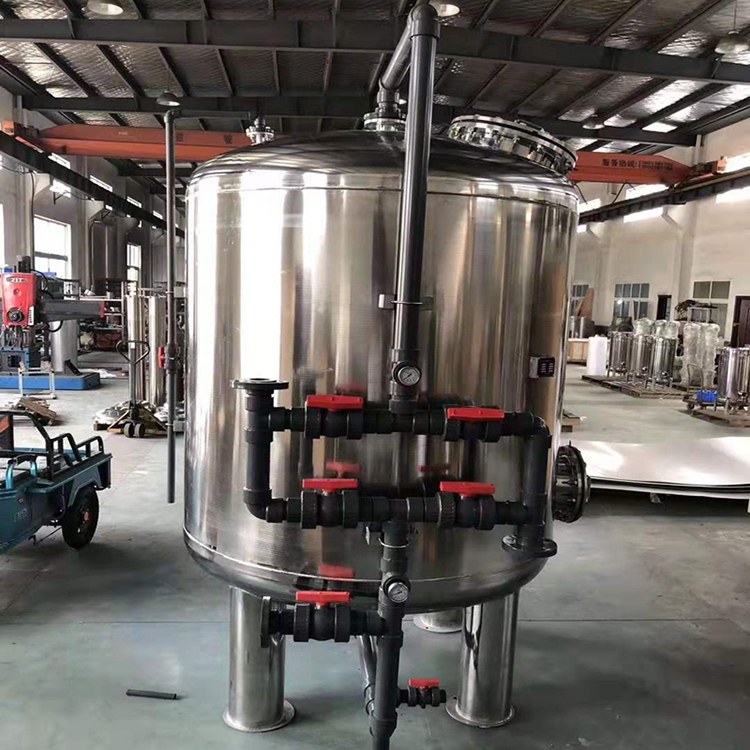

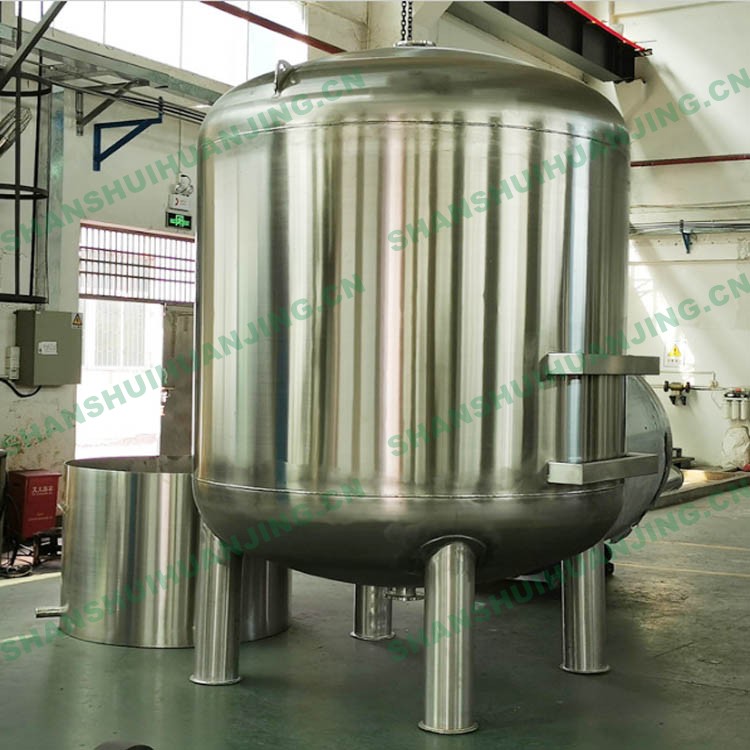

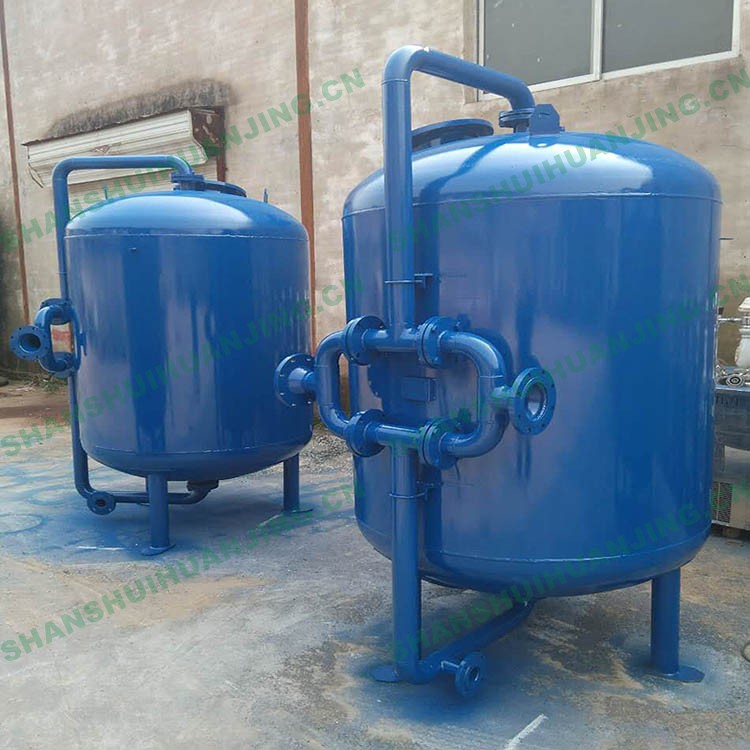

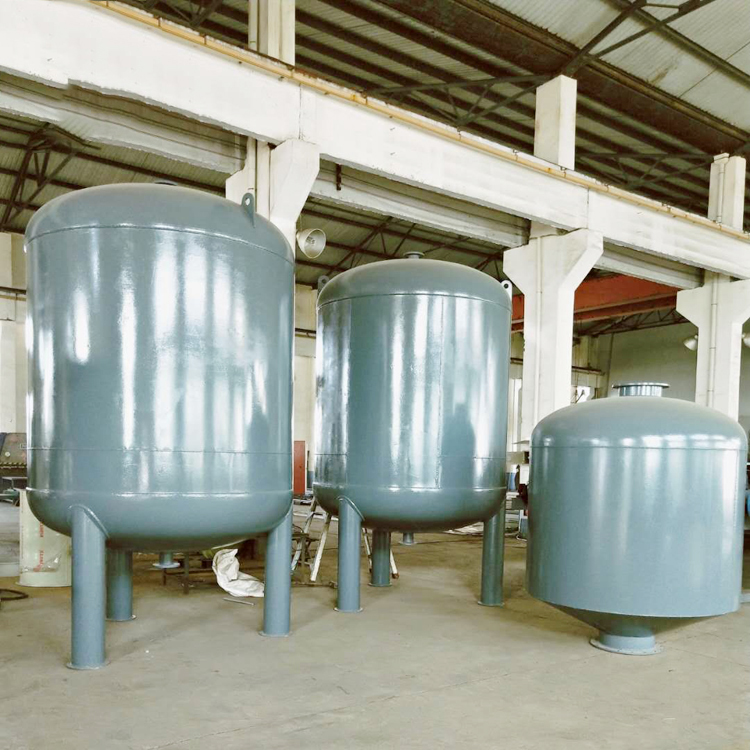

The filter is composed of a cylinder, a stainless steel filter screen, a drainage part, a transmission device, and an electrical control part. After the water to be treated passes through the filter cartridge of the filter screen, its impurities are blocked. When cleaning is needed, simply remove the detachable Remove the filter cartridge and reinstall it after processing.

Product Description

Technical parameters:

Model	Water treatment capacity (t/n)	Barrel diameter D N (mm)	Total height (mm)	Inlet and outlet pipesDN(mm)	Backwash pipe DN(mm)	Escape-pipe DN(mm)
SSM-5	5	1000	2770	50	100	15
SSM-10	10	1400	2830	65	150	20
SSM-15	15	1700	2920	80	175	20
SSM-20	20	2000	3010	100	200	25
SSM-25	25	2200	3080	100	250	25
SSM-30	30	2400	3140	125	250	25
SSM-40	40	2800	3260	125	300	32
SSM-50	50	3000	3320	150	300	32

Note: The above data is for reference only. Our company reserves the right to modify it and can support non-standard customization.

Application scope:
Domestic sewage pretreatment and sludge concentration. Industrial water treatment: recovery of papermaking white water pulp and reuse of clean water. Removal of chromaticity and impurities in printing and dyeing wastewater. Removal of various heavy metal ions from electroplating wastewater.
