The fully automatic dosing device is an automatic dosing device, which can be divided into integrated automatic dosing device, circulating water automatic dosing device, boiler automatic dosing device, phosphate automatic dosing device, etc. Each type of dosing device has different specifications. When selecting, attention should be paid to selecting corresponding equipment according to the needs of different industries. The dosing device is a complete set of equipment that integrates dosing, stirring, liquid conveying, and automatic control. It is used for the accurate dosing and metering of water treatment agents in the circulating water system that requires the addition of buffering agents, scale inhibitors, and fungicides. In the process of water supply and drainage treatment, various chemical agents are often added as scale inhibitors, disinfectants, algae killers, coagulants, and coagulants to achieve the goal of purifying water.
Performance characteristics:

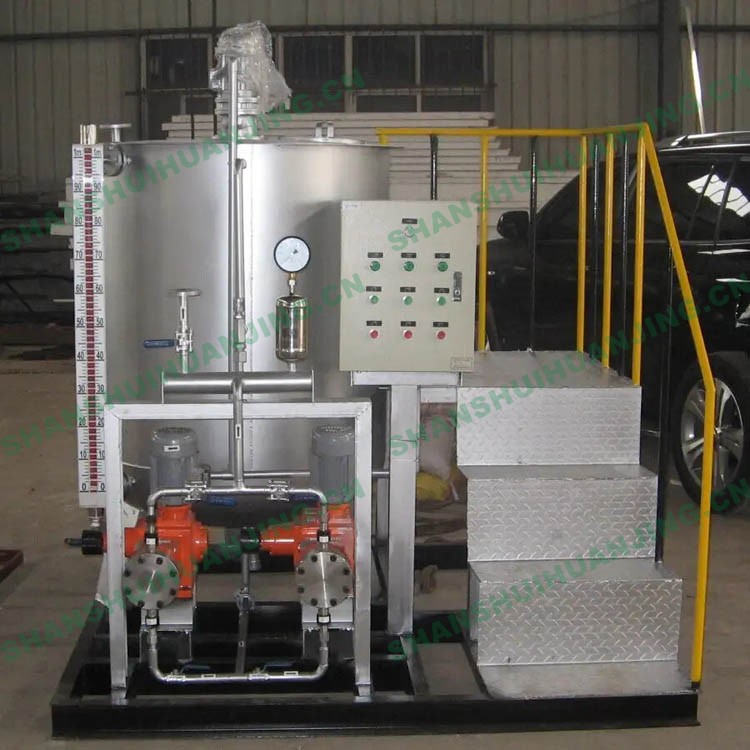

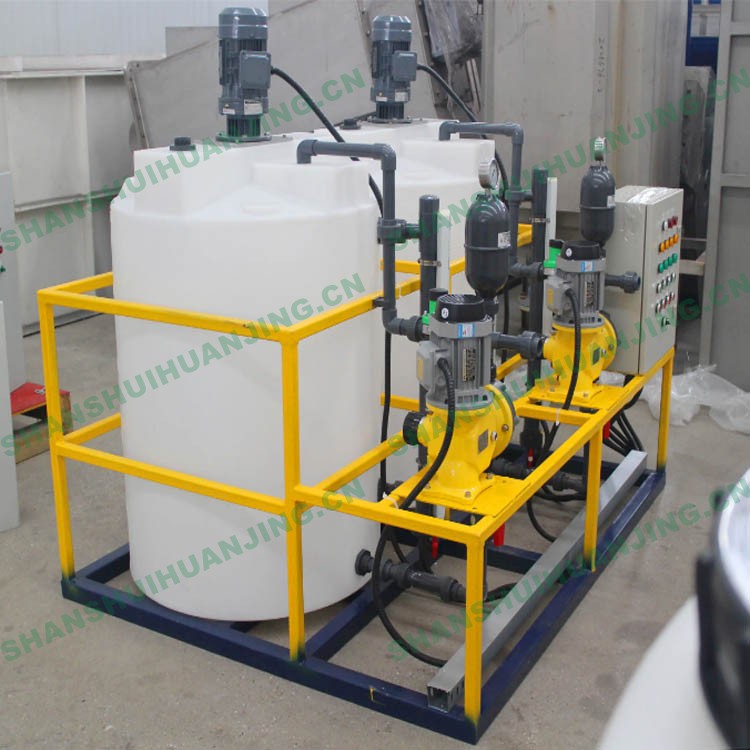

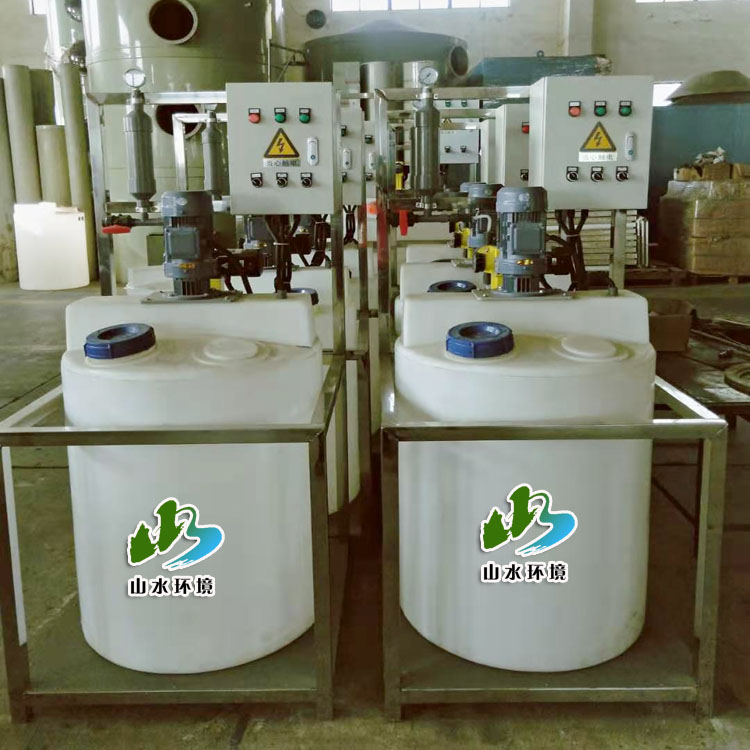

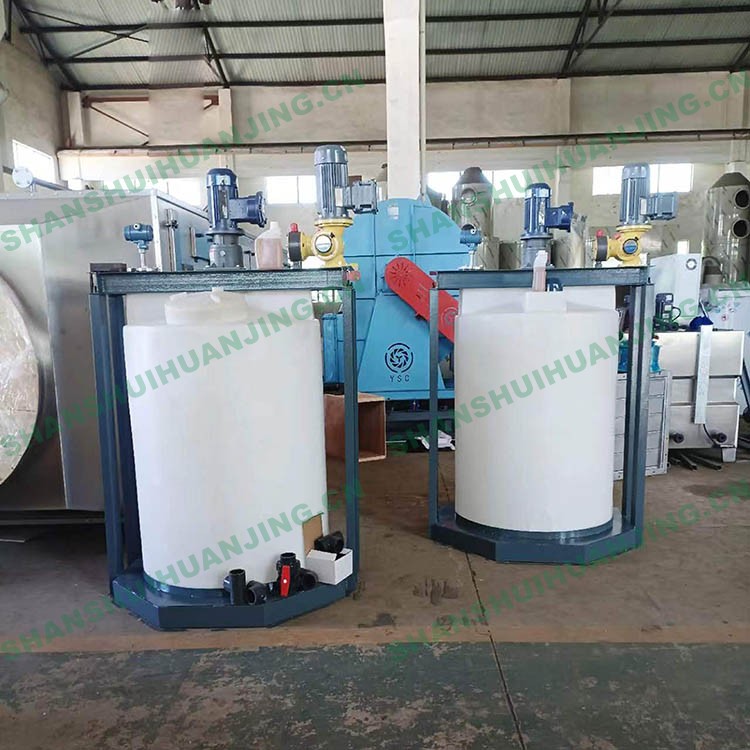

The automatic dosing equipment mainly includes feeding system, storage tank, dosing system, power control system, etc. The dissolution bucket is equipped with facilities such as a liquid level gauge, low liquid level alarm, valves, etc. required for automatic operation. According to the needs, a quantitative amount of medication is placed in the stirring solution box for stirring and dissolution. After dissolution, it is then pumped to the dosing point through a metering pump. The amount of medication can be freely adjusted to meet different dosing requirements.
Application scope:
Electricity, petroleum, chemical, metallurgical industries, environmental engineering, water treatment, etc.
Technical Parameter:
Device Name | Combinationform | Tank volume | Flow parameters | Electrical load | External dimensions | |
flow | pressure | |||||
Ammonia dosing device | One box with two pumps | Customized | 40 | 1.6 | 3 | 1600x2400x2600 |
Two boxes and three pumps | 58 | 2.5 | 4 | 3000x2400x2600 | ||
Hydrazine addition device | One box with two pumps | 40 | 1.6 | 3 | 1600x2400x2600 | |
Two boxes and three pumps | 58 | 2.5 | 4 | 3000x2400x2600 | ||
Hydrazine addition device | One box with two pumps | 30 | 2 | 6 | 1600x2400x2600 | |
Two boxes and three pumps | 47 | 2.4 | 10 | 3000x2400x2600 | ||
Adding anti scaling device | One box with two pumps | 58 | 1.6 | 4 | 1600x2400x2600 | |
Two boxes and three pumps | 160 | 1.6 | 6 | 3000x2400x2600 |
Note: The above data is for reference only. Our company reserves the right to modify it and can support non-standard customization.
